GeForce4 Ti 4800 SE

Kelvin GeForce 4 Series Collector / Retro Desktop DDR 2003 NVIDIA

Key Metrics

Launch Date: 2003-02-16
Memory: 128 MB DDR
Memory Bandwidth: 8.8 GB/s
Interface: AGP 8x
Process Node: TSMC 150 nm
Bus Width: 128-bit

Save this GPU, then open another GPU page to compare them side by side.

GPU Specs

Identity
Entry Type	Reference GPU
Official Name	NVIDIA GeForce4 Ti 4800 SE
GPU Codename	NV28
Architecture	Kelvin
Launch Date	2003-02-16
Market Segment Notes	Desktop in GeForce 4 Series
Core Specs
GPU Die	NV28
Process Node	TSMC 150 nm
Transistor Count	0.06 billion
Die Size	142 mm²
CUDA Cores	Not applicable
SM Count	Not applicable
TMUs	8
ROPs	4
Base Clock	275 MHz
Boost Clock	275 MHz
Pixel Fillrate	1.1 GP/s
Texture Fillrate	2.2 GT/s
Memory
Memory Size	128 MB
Memory Type	DDR
Memory Bus Width	128-bit
Memory Clock	275 MHz
Memory Bandwidth	8.8 GB/s
Board and Display
Recommended PSU	200 W
Power Connectors	None
Interface	AGP 8x
Display Outputs	1x DVI, 1x VGA, 1x S-Video
Slot Width	Single-slot, 216 mm length
Card Length	216 mm
Board Partner Model	Reference or OEM specification
Reference Design	NVIDIA reference design
Software
DirectX Support	DirectX 8.1
OpenGL Support	OpenGL 1.5

GPU Gallery

Front of the ELSA Gladiac 728 GeForce4 Ti 4800SE board with its branded cooler installed — **Front with cooler: representative physical card, ELSA Gladiac 728 (GeForce4 Ti 4800SE).**View original external gallery

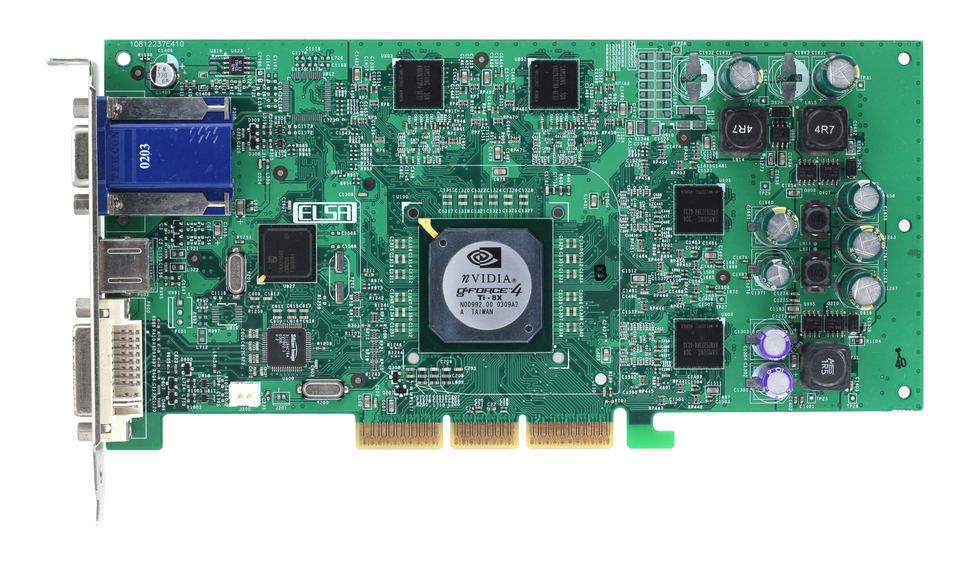

Front component side of the ELSA Gladiac 728 with the cooler removed, exposing the GPU and memory — **Exposed front / components: representative physical card, ELSA Gladiac 728 (GeForce4 Ti 4800SE).**View original external gallery

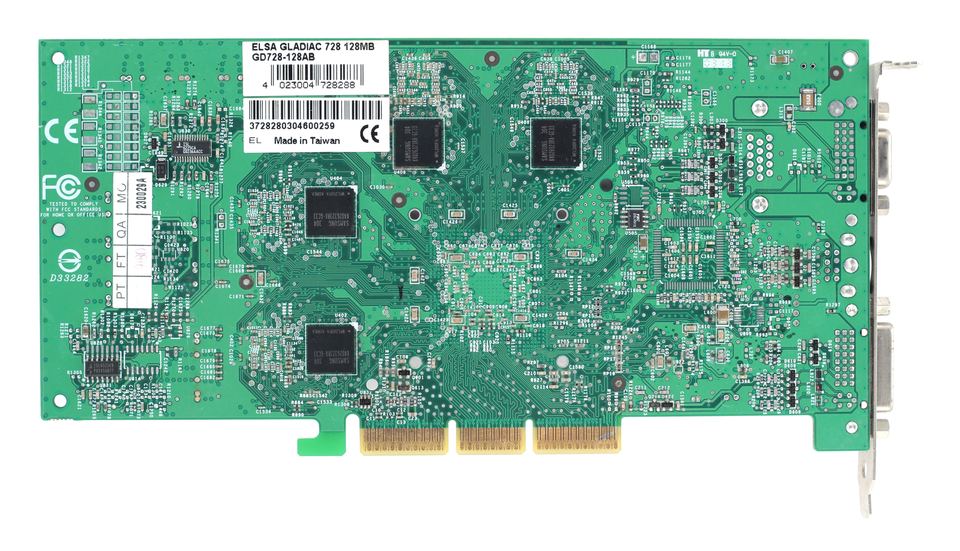

Reverse of the ELSA Gladiac 728 graphics board showing its model and 128 MB sticker — **Rear and model sticker: representative physical card, ELSA Gladiac 728 (GeForce4 Ti 4800SE).**View original external gallery

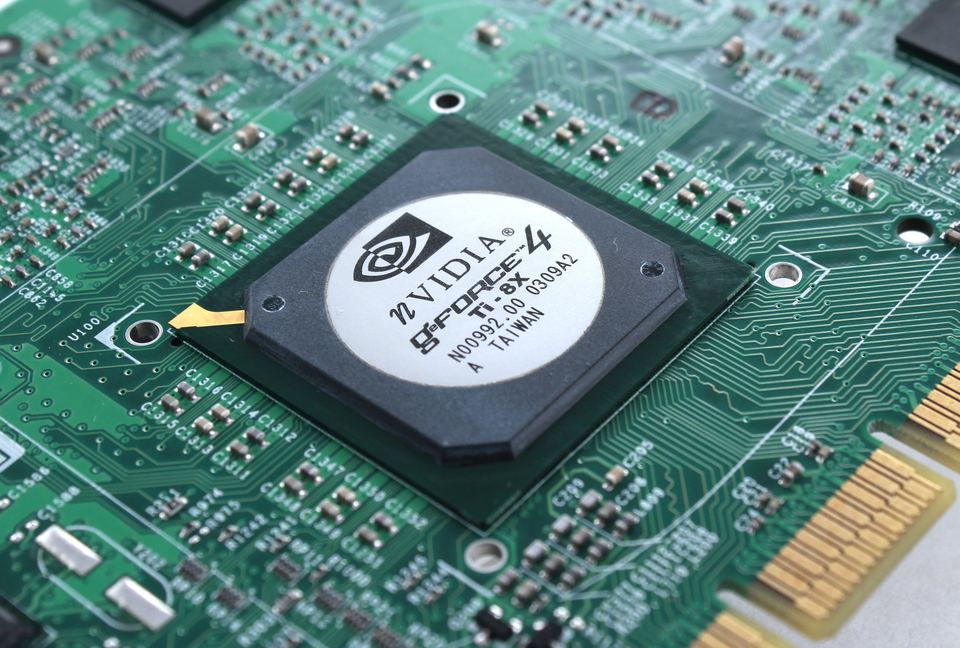

Close view of the NVIDIA GeForce4 Ti-8X chip on the ELSA Gladiac 728 board — **Chip close-up: representative physical card, ELSA Gladiac 728 (GeForce4 Ti 4800SE).** The Ti-8X chip marking alone does not establish the retail suffix; the museum page and rear model sticker identify this Gladiac 728 board.View original external gallery

Why It Mattered

GeForce4 Ti 4800 SE belongs to the Kelvin and GeForce 4 Series era around 2003, when PC graphics cards varied heavily by bus, memory chips, BIOS, cooler, and display outputs. Tracking the exact model helps retro builders distinguish period-correct boards from similarly named variants.

Board Partner Cards

Board-partner versions of this GPU as they shipped: coolers, factory clocks, box art, and pack-in bundles.

MSIMSI Ti4800SE-TD8X (GeForce4 Ti 4800 SE)

Cooler: Single-slot axial cooler with MSI shroud

Box and Bundle

10 CDs of software and games in the retail box
Five-foot S-Video cable
DVI-I to VGA adapter
9-pin to TV-out breakout connector
MSI case badge

Collector Notes

Period reviews repeatedly singled out the bundle: ten CDs of then-current games and software plus a full cable and adapter kit. Complete boxed examples with the full CD set are the collectible configuration.

Ran at reference GeForce4 Ti 4800 SE clocks; the retail draw was the unusually large software and game bundle rather than factory overclocking. A VIVO-capable sibling (Ti4800SE-VTD8X) added video input.

Reviews1 review

ArticlePartner cardHEXUS

Review: XFX GeForce4 Ti 4800-SE - Graphics - HEXUS.net

The reviewed board is a partner version of this GPU. Review of the GeForce4 Ti 4800 SE.
