GeForce4 Ti 4600

Kelvin GeForce 4 Series Desktop DDR 2002 NVIDIA

Key Metrics

Launch Date: 2002-02-06
Memory: 128 MB DDR
Memory Bandwidth: 10.37 GB/s
Interface: AGP 4x
Process Node: TSMC 150 nm
Bus Width: 128-bit

Save this GPU, then open another GPU page to compare them side by side.

GPU Specs

Identity
Entry Type	Reference GPU
Official Name	NVIDIA GeForce4 Ti 4600
GPU Codename	NV25
Architecture	Kelvin
Launch Date	2002-02-06
Market Segment Notes	Desktop in GeForce 4 Series
Core Specs
GPU Die	NV25
Process Node	TSMC 150 nm
Transistor Count	0.06 billion
Die Size	142 mm²
CUDA Cores	Not applicable
SM Count	Not applicable
TMUs	8
ROPs	4
Base Clock	300 MHz
Boost Clock	300 MHz
Pixel Fillrate	1.2 GP/s
Texture Fillrate	2.4 GT/s
Memory
Memory Size	128 MB
Memory Type	DDR
Memory Bus Width	128-bit
Memory Clock	324 MHz
Memory Bandwidth	10.37 GB/s
Board and Display
Recommended PSU	200 W
Power Connectors	None
Interface	AGP 4x
Display Outputs	1x DVI, 1x VGA, 1x S-Video
Slot Width	Single-slot, 216 mm length
Card Length	216 mm
Board Partner Model	Reference or OEM specification
Reference Design	NVIDIA reference design
Software
DirectX Support	DirectX 8.1
OpenGL Support	OpenGL 1.5

GPU Gallery

Representative Albatron GeForce4 Ti 4600 physical card, front view — **Front view: representative physical card, Albatron GeForce4 Ti 4600.** Example Albatron board: 128 MB DDR; museum says AGP without speed, Wiki lists AGP 4x.View original external gallery

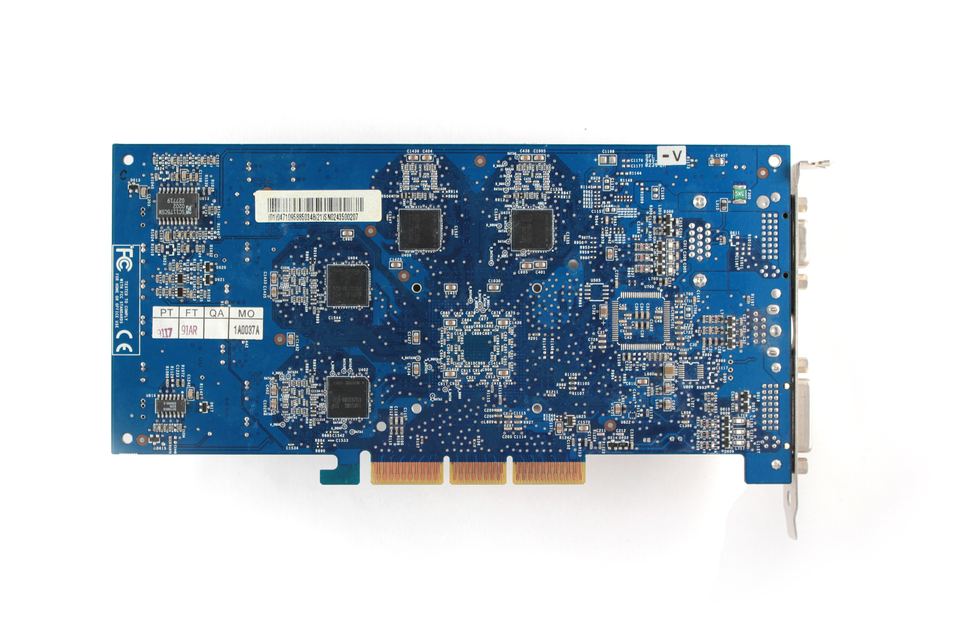

Rear view of nVidia GeForce 4 Ti 4600 board — **Rear: representative physical card, nVidia GeForce 4 Ti 4600 board.** Example board bus: museum lists AGP without a generation; Wiki lists AGP 4xView original external gallery

Why It Mattered

GeForce4 Ti 4600 belongs to the Kelvin and GeForce 4 Series era around 2002, when PC graphics cards varied heavily by bus, memory chips, BIOS, cooler, and display outputs. Tracking the exact model helps retro builders distinguish period-correct boards from similarly named variants.

Reviews2 reviews

ArticleAnandTech

NVIDIA GeForce4 Ti 4600 Review

Review coverage of the GeForce4 Ti 4600.

ArticlePartner cardHotHardware · 2002-03-20

Visiontek GeForce 4 Ti 4600!

The reviewed board is a partner version of this GPU.

Sources

Primary / manufacturer sources

NVIDIA Launches the GeForce4 GPUsOfficial February 6, 2002 launch naming GeForce4 Ti 4600, 4400, and 4200 and defining the family's 128-bit DDR memory interfaceOpen source

Independent reference sources

TechPowerUp GPU SpecsModel-level specification reference for this GPU entryOpen source

Reference databases

RightNow GPU DatabaseOpen GPU database used to cross-check specifications A reference database: good for cross-checking specifications, but not proof of the original release details on its own.Open source

Photo sources

Videocard Virtual Museum
Credit: Videocard Virtual MuseumModified: resized and recompressed JPEG.Original external gallery
Photo: Albatron GeForce4 Ti 4600License: CC BY (version unspecified)Source claim: Source page footer states Creative Commons Attribution; version unspecifiedConfiguration: Example Albatron board: 128 MB DDR; museum says AGP without speed, Wiki lists AGP 4x.
Photo: nVidia GeForce 4 Ti 4600 board (Rear)License: Specific image license terms not identified on source pageSource claim: Museum footer links general Creative Commons information; specific image license terms are not identified on the source pageConfiguration: Example board bus: museum lists AGP without a generation; Wiki lists AGP 4x
