GeForce 256 DDR

GeForce 256 DDR is the more bandwidth-rich GeForce 256 variant and a stronger collector target.

Celsius GeForce 256 Series Desktop DDR 1999 NVIDIA

Key Metrics

Launch Date: 1999-12-20
Memory: 32 MB DDR
Memory Bandwidth: 4.8 GB/s
Interface: AGP 4x
Process Node: TSMC 220 nm
Bus Width: 128-bit

Save this GPU, then open another GPU page to compare them side by side.

GPU Specs

Identity
Entry Type	Reference GPU
Official Name	NVIDIA GeForce 256 DDR
GPU Codename	NV10
Architecture	Celsius
Launch Date	1999-12-20
Market Segment Notes	Desktop in GeForce 256 Series
Core Specs
GPU Die	NV10
Process Node	TSMC 220 nm
Transistor Count	0.02 billion
Die Size	139 mm²
CUDA Cores	Not applicable
SM Count	Not applicable
TMUs	4
ROPs	4
Base Clock	120 MHz
Boost Clock	120 MHz
Pixel Fillrate	0.48 GP/s
Texture Fillrate	0.48 GT/s
Memory
Memory Size	32 MB
Memory Type	DDR
Memory Bus Width	128-bit
Memory Clock	150 MHz
Memory Bandwidth	4.8 GB/s
Board and Display
Recommended PSU	200 W
Power Connectors	None
Interface	AGP 4x
Display Outputs	1x VGA
Slot Width	Single-slot
Board Partner Model	Reference or OEM specification
Reference Design	NVIDIA reference design
Software
DirectX Support	DirectX 7.0
OpenGL Support	OpenGL 1.2

GPU Gallery

Front view of nVidia GeForce256 DDR board — **Front: representative physical card, nVidia GeForce256 DDR board.** Example board bus: museum lists AGP without a generation; Wiki lists AGP 4xView original external gallery

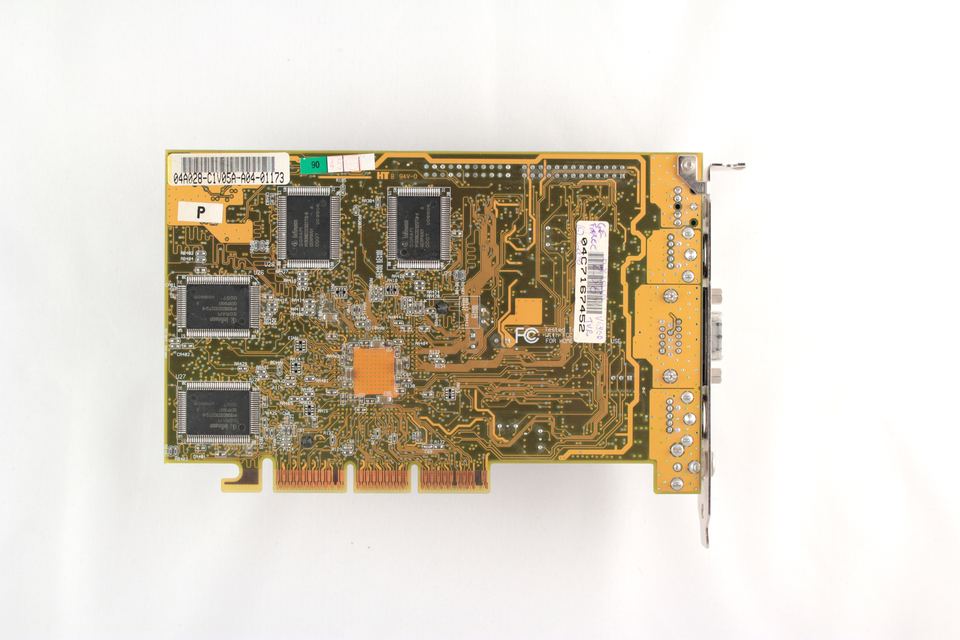

Rear view of nVidia GeForce256 DDR board — **Rear: representative physical card, nVidia GeForce256 DDR board.** Example board bus: museum lists AGP without a generation; Wiki lists AGP 4xView original external gallery

Why It Mattered

GeForce 256 DDR showed the first GeForce architecture with substantially better memory bandwidth than SDR boards. It is one of the clearest early examples of memory configuration changing the value of a GPU entry.

Collector Notes

Prioritize original coolers, DDR memory markings, retail bundle, and board-partner identity. Creative Annihilator Pro and other clearly identified DDR cards are more valuable than vague GeForce listings.

Common Failure Points

Fan failure, memory artifacts, and modified coolers are the key risks. Listings may blur SDR and DDR models, so memory-chip photos and model numbers matter.

Compare with

Reviews1 review

ArticleAnandTech

NVIDIA GeForce 256 Part 1: To buy or not to buy

Launch review of the GeForce 256, covering both the SDR and DDR versions.
