Radeon X800 GTO

R400 Radeon X Series Gaming Desktop DDR 2007

Key Metrics

Launch Date: 2007-12-29
Memory: 128 MB DDR
Memory Bandwidth: 22.4 GB/s
TDP/TBP: 49 W
Interface: PCIe 1.0 x16
Process Node: TSMC 130 nm

Add to comparison

Save this GPU, then open another GPU page to compare them side by side.

GPU Specs

What do these fields mean?

Identity
Entry Type	Reference GPU
Official Name	ATI Radeon X800 GTO
Architecture	R400
Launch Date	2007-12-29
Core Specs
GPU Die	R423
Chip Variant / Package	FCBGA-1265
Process Node	TSMC 130 nm
Transistor Count	0.16 billion
Die Size	289 mm²
TMUs	12
ROPs	12
Base Clock	400 MHz
Boost Clock	400 MHz
Pixel Fillrate	4.8 GP/s
Texture Fillrate	4.8 GT/s
Memory
Memory Size	128 MB
Memory Type	DDR
Memory Bus Width	256-bit
Memory Clock	350 MHz
Memory Bandwidth	22.4 GB/s
Board and Display
TDP / TBP	49 W
Recommended PSU	200 W
Interface	PCIe 1.0 x16
Display Outputs	1x DVI, 1x VGA, 1x S-Video
Slot Width	Single-slot
Software
DirectX Support	DirectX 9.2
OpenGL Support	OpenGL 2.1

GPU Gallery

Front of Sapphire Radeon X800 GTO board — Front: representative physical card, Sapphire Radeon X800 GTO board. Example board memory: museum lists 256MB; Wiki lists 128 MB; Example board memory type: museum lists GDDR3; Wiki lists DDR; Museum PCI-e generation is unspecified; Wiki lists PCIe 1.0 x16.; The rear sticker reads X800 GTO 256M GDDR3; the pictured board differs from the Wiki memory entry.View original external gallery

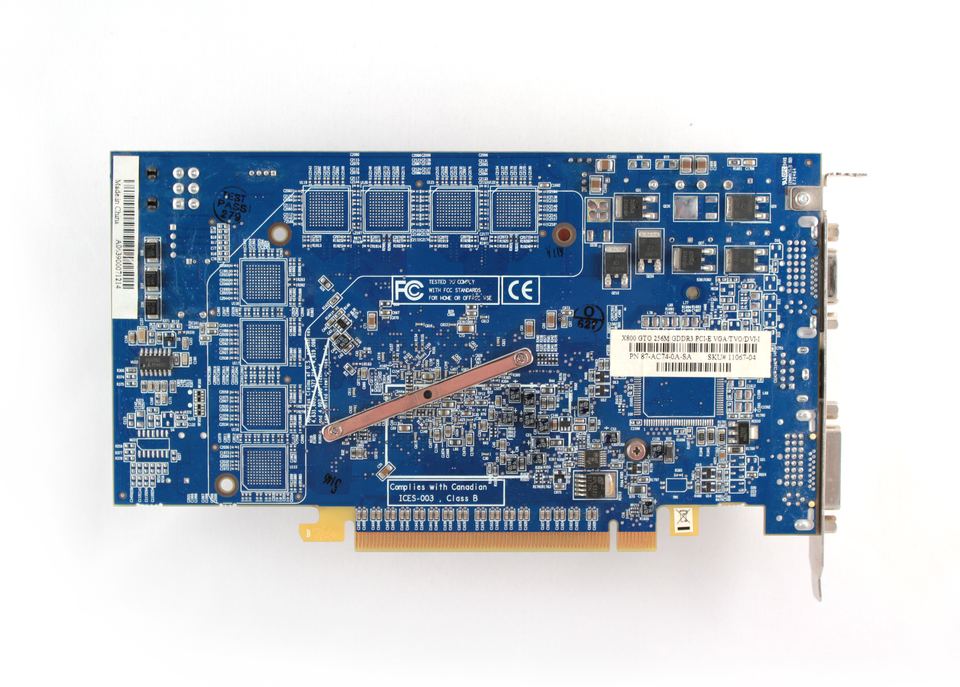

Rear of Sapphire Radeon X800 GTO board — Rear: representative physical card, Sapphire Radeon X800 GTO board. Example board memory: museum lists 256MB; Wiki lists 128 MB; Example board memory type: museum lists GDDR3; Wiki lists DDR; Museum PCI-e generation is unspecified; Wiki lists PCIe 1.0 x16.; The rear sticker reads X800 GTO 256M GDDR3; the pictured board differs from the Wiki memory entry.View original external gallery
