Radeon X600 XT

R300 Radeon X Series Gaming Desktop DDR 2004

Key Metrics

Launch Date: 2004-09-01
Memory: 128 MB DDR
Memory Bandwidth: 11.84 GB/s
TDP/TBP: 25 W
Interface: PCIe 1.0 x16
Process Node: TSMC 130 nm

Add to comparison

Save this GPU, then open another GPU page to compare them side by side.

GPU Specs

What do these fields mean?

Identity
Entry Type	Reference GPU
Official Name	ATI Radeon X600 XT
Architecture	R300
Launch Date	2004-09-01
Core Specs
GPU Die	RV380
Process Node	TSMC 130 nm
Transistor Count	0.07 billion
Die Size	92 mm²
TMUs	4
ROPs	4
Base Clock	500 MHz
Boost Clock	500 MHz
Pixel Fillrate	2 GP/s
Texture Fillrate	2 GT/s
Memory
Memory Size	128 MB
Memory Type	DDR
Memory Bus Width	128-bit
Memory Clock	370 MHz
Memory Bandwidth	11.84 GB/s
Board and Display
TDP / TBP	25 W
Recommended PSU	200 W
Interface	PCIe 1.0 x16
Display Outputs	1x DVI, 1x VGA, 1x S-Video
Slot Width	Single-slot
Software
DirectX Support	DirectX 9.0
OpenGL Support	OpenGL 2.0

GPU Gallery

Front view of ATI Radeon X600XT board — Front: representative physical card, ATI Radeon X600XT board.View original external gallery

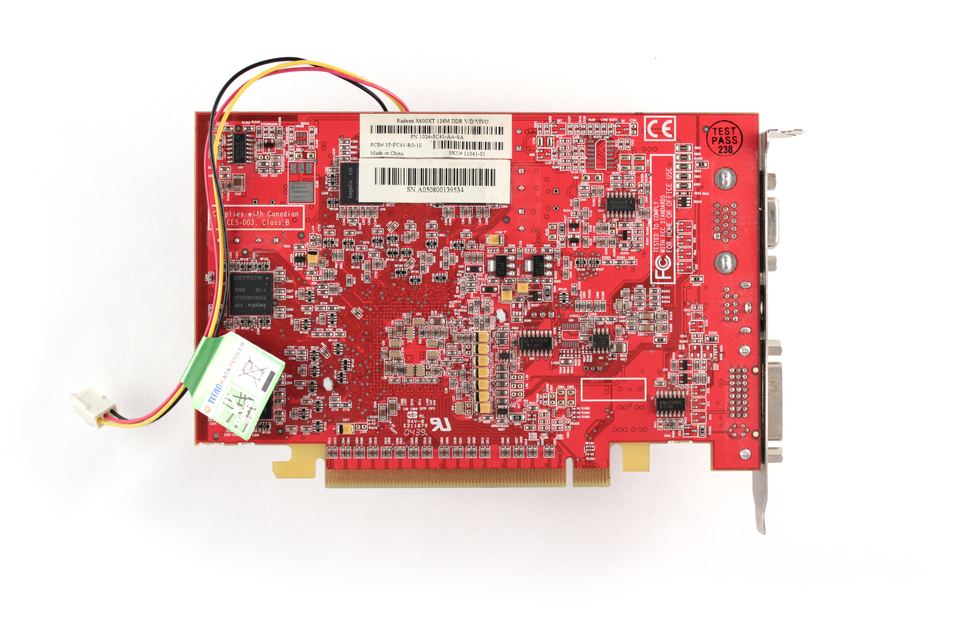

Rear view of ATI Radeon X600XT board — Rear: representative physical card, ATI Radeon X600XT board.View original external gallery

Reviews1 review

ArticlePartner cardGuru3D · 2004-08-24

HiS Radeon X600 XT iCooler VIVO review

The reviewed board is a partner version of this GPU. Review of the Radeon X600 XT, essentially a native PCIe Radeon 9600 XT.
