Radeon X1600 XT

Ultra-Threaded SE Radeon X1000 Series Gaming Desktop GDDR3 2005

Key Metrics

Launch Date: 2005-10-01
Memory: 256 MB GDDR3
Memory Bandwidth: 22.08 GB/s
TDP/TBP: 42 W
Interface: PCIe 1.0 x16
Process Node: TSMC 90 nm

Add to comparison

Save this GPU, then open another GPU page to compare them side by side.

GPU Specs

What do these fields mean?

Identity
Entry Type	Reference GPU
Official Name	ATI Radeon X1600 XT
Architecture	Ultra-Threaded SE
Launch Date	2005-10-01
Core Specs
GPU Die	RV530
Process Node	TSMC 90 nm
Transistor Count	0.16 billion
Die Size	150 mm²
TMUs	4
ROPs	4
Base Clock	590 MHz
Boost Clock	590 MHz
Pixel Fillrate	2.36 GP/s
Texture Fillrate	2.36 GT/s
Memory
Memory Size	256 MB
Memory Type	GDDR3
Memory Bus Width	128-bit
Memory Clock	690 MHz
Memory Bandwidth	22.08 GB/s
Board and Display
TDP / TBP	42 W
Recommended PSU	200 W
Interface	PCIe 1.0 x16
Display Outputs	1x DVI, 1x VGA, 1x S-Video
Slot Width	Single-slot
Software
Shader Model	3.0
DirectX Support	DirectX 9.3
OpenGL Support	OpenGL 2.1

GPU Gallery

Front of ATI Radeon X1600 XT reference board — Front: representative physical card, ATI Radeon X1600 XT reference board. Museum memory field reads 256 MHz, not a capacity; photographed memory size is unverified. Museum PCI-e generation is unspecified; Wiki lists PCIe 1.0 x16.; The museum title and image filenames identify this X1600 XT gallery; chip markings alone do not prove a retail SKU.View original external gallery

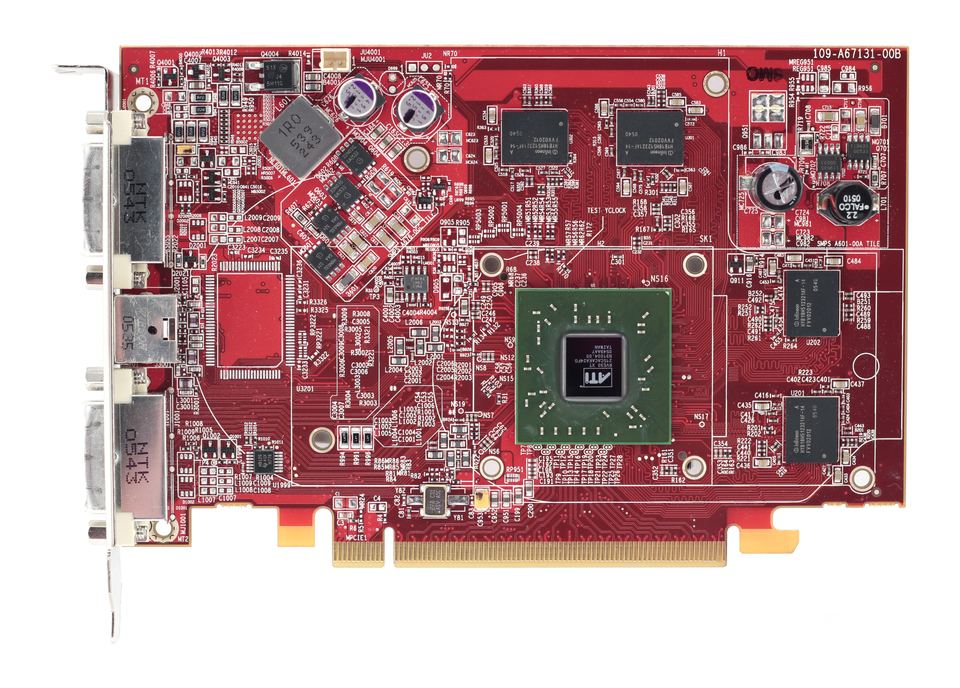

Exposed front of ATI Radeon X1600 XT reference board — Exposed front: representative physical card, ATI Radeon X1600 XT reference board. Museum memory field reads 256 MHz, not a capacity; photographed memory size is unverified. Museum PCI-e generation is unspecified; Wiki lists PCIe 1.0 x16.; The museum title and image filenames identify this X1600 XT gallery; chip markings alone do not prove a retail SKU.View original external gallery

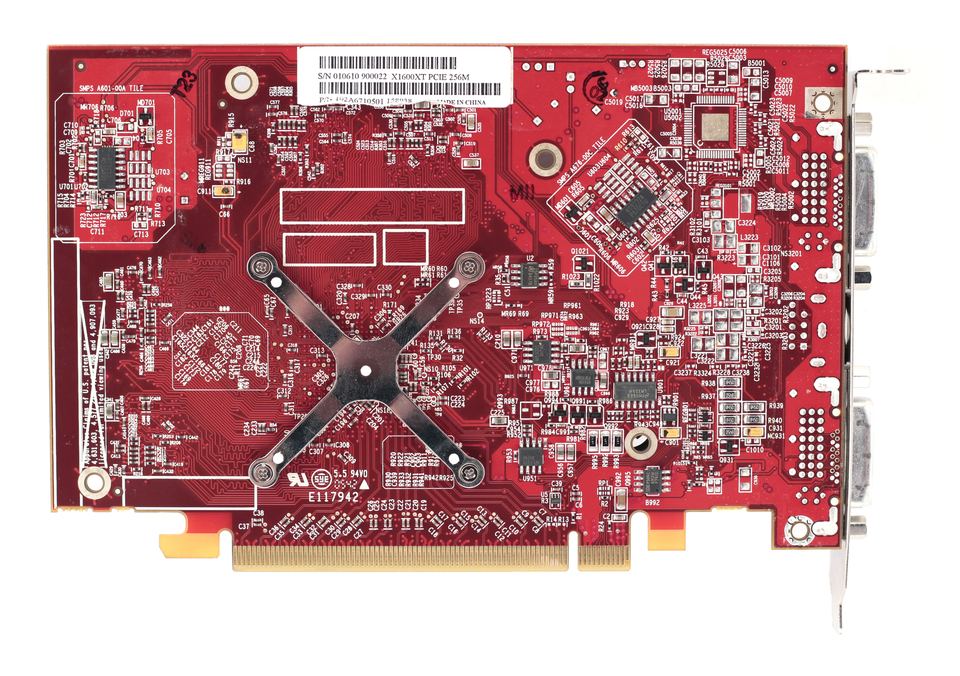

Rear of ATI Radeon X1600 XT reference board — Rear: representative physical card, ATI Radeon X1600 XT reference board. Museum memory field reads 256 MHz, not a capacity; photographed memory size is unverified. Museum PCI-e generation is unspecified; Wiki lists PCIe 1.0 x16.; The museum title and image filenames identify this X1600 XT gallery; chip markings alone do not prove a retail SKU.View original external gallery

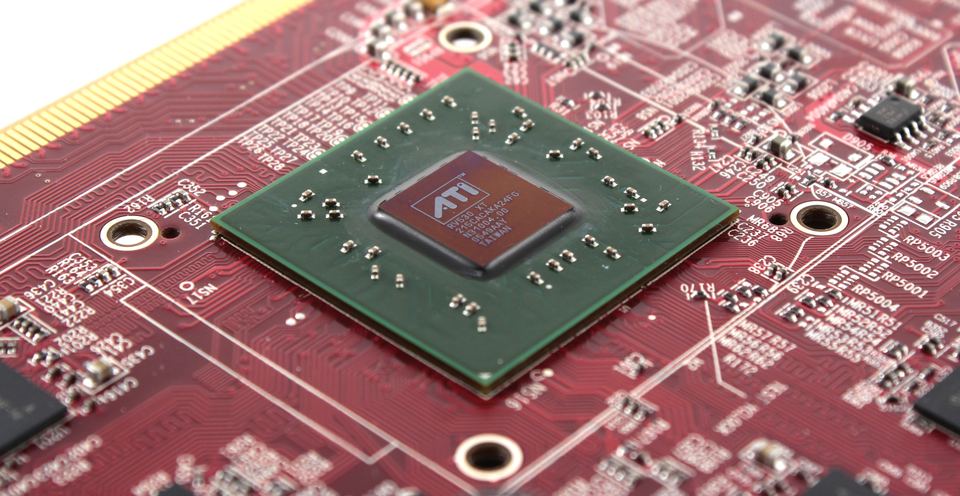

Chip close-up of ATI Radeon X1600 XT reference board — Chip close-up: chip on ATI Radeon X1600 XT reference board. Museum memory field reads 256 MHz, not a capacity; photographed memory size is unverified. Museum PCI-e generation is unspecified; Wiki lists PCIe 1.0 x16.; The museum title and image filenames identify this X1600 XT gallery; chip markings alone do not prove a retail SKU.View original external gallery

Reviews2 reviews

ArticleAnandTech

ATI Radeon X1600 XT Review

Review coverage of the Radeon X1600 XT.

ArticlePartner cardHEXUS · 2006-06-08

Review: Sapphire Radeon X1600 XT Ultimate Edition 256MB

The reviewed board is a partner version of this GPU.
