Radeon X1550

Ultra-Threaded SE Radeon X1000 Series Gaming Desktop DDR2 2007

Key Metrics

Launch Date: 2007-01-01
Memory: 256 MB DDR2
Memory Bandwidth: 12.8 GB/s
TDP/TBP: 27 W
Interface: PCIe 1.0 x16
Process Node: UMC 90 nm

Add to comparison

Save this GPU, then open another GPU page to compare them side by side.

GPU Specs

What do these fields mean?

Identity
Entry Type	Reference GPU
Official Name	ATI Radeon X1550
Architecture	Ultra-Threaded SE
Launch Date	2007-01-01
Core Specs
GPU Die	RV516
Process Node	UMC 90 nm
Transistor Count	0.1 billion
Die Size	100 mm²
TMUs	4
ROPs	4
Base Clock	550 MHz
Boost Clock	550 MHz
Pixel Fillrate	2.2 GP/s
Texture Fillrate	2.2 GT/s
Memory
Memory Size	256 MB
Memory Type	DDR2
Memory Bus Width	128-bit
Memory Clock	400 MHz
Memory Bandwidth	12.8 GB/s
Board and Display
TDP / TBP	27 W
Recommended PSU	200 W
Interface	PCIe 1.0 x16
Display Outputs	1x DVI, 1x VGA, 1x S-Video
Slot Width	Single-slot
Software
Shader Model	3.0
DirectX Support	DirectX 9.3
OpenGL Support	OpenGL 2.1

GPU Gallery

Front view of ATI Radeon X1550 board — Front: representative physical card, ATI Radeon X1550 board. Example board memory: museum does not state it; Wiki lists 256 MB; Example board memory type: museum does not state it; Wiki lists DDR2View original external gallery

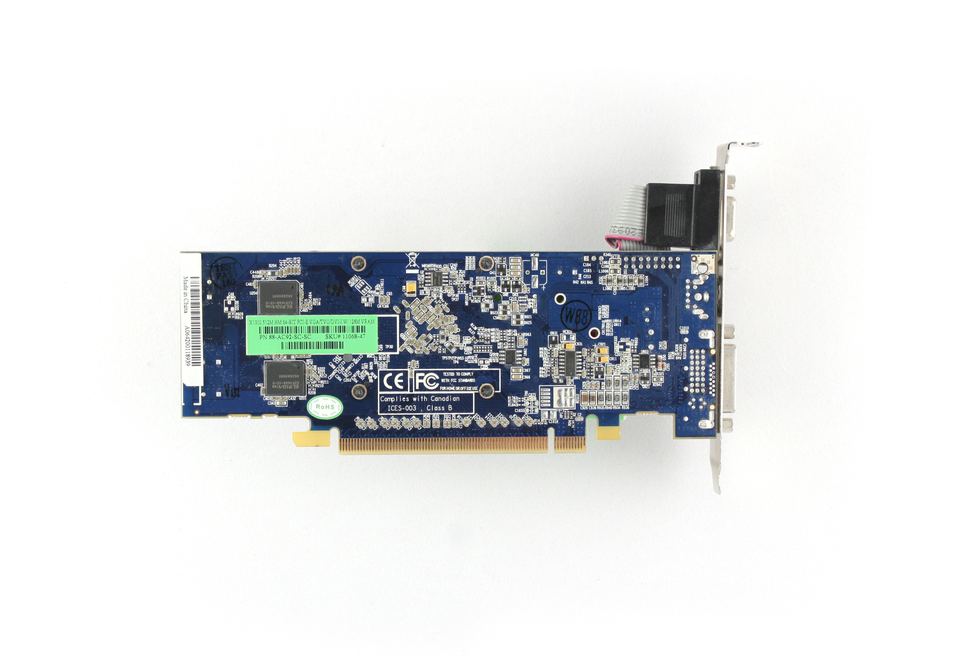

Rear view of ATI Radeon X1550 board — Rear: representative physical card, ATI Radeon X1550 board. Example board memory: museum does not state it; Wiki lists 256 MB; Example board memory type: museum does not state it; Wiki lists DDR2View original external gallery

Sources

Independent reference sources

TechPowerUp GPU SpecsOpen source

Photo sources

Videocard Virtual Museum
Board: ATI Radeon X1550 boardCredit: Videocard Virtual MuseumLicense: Specific image license terms not identified on source pageSource claim: Museum footer links general Creative Commons information; specific image license terms are not identified on the source pageModified: resized and recompressed JPEG.Configuration: Example board memory: museum does not state it; Wiki lists 256 MB; Example board memory type: museum does not state it; Wiki lists DDR2Original external gallery
View: Front
View: Rear
