Radeon X1300

Ultra-Threaded SE Radeon X1000 Series Gaming Desktop DDR 2005

Key Metrics

Launch Date: 2005-12-01
Memory: 256 MB DDR
Memory Bandwidth: 8 GB/s
Interface: PCIe 1.0 x16
Process Node: TSMC 90 nm
Bus Width: 128-bit

Add to comparison

Save this GPU, then open another GPU page to compare them side by side.

GPU Specs

What do these fields mean?

Identity
Entry Type	Reference GPU
Official Name	ATI Radeon X1300
Architecture	Ultra-Threaded SE
Launch Date	2005-12-01
Core Specs
GPU Die	RV515
Process Node	TSMC 90 nm
Transistor Count	0.11 billion
Die Size	100 mm²
TMUs	4
ROPs	4
Base Clock	450 MHz
Boost Clock	450 MHz
Pixel Fillrate	1.8 GP/s
Texture Fillrate	1.8 GT/s
Memory
Memory Size	256 MB
Memory Type	DDR
Memory Bus Width	128-bit
Memory Clock	250 MHz
Memory Bandwidth	8 GB/s
Board and Display
Recommended PSU	200 W
Interface	PCIe 1.0 x16
Display Outputs	1x DVI, 1x VGA, 1x S-Video
Slot Width	Single-slot
Software
Shader Model	3.0
DirectX Support	DirectX 9.3
OpenGL Support	OpenGL 2.1

GPU Gallery

Front view of ATI Radeon X1300 board — Front: representative physical card, ATI Radeon X1300 board.View original external gallery

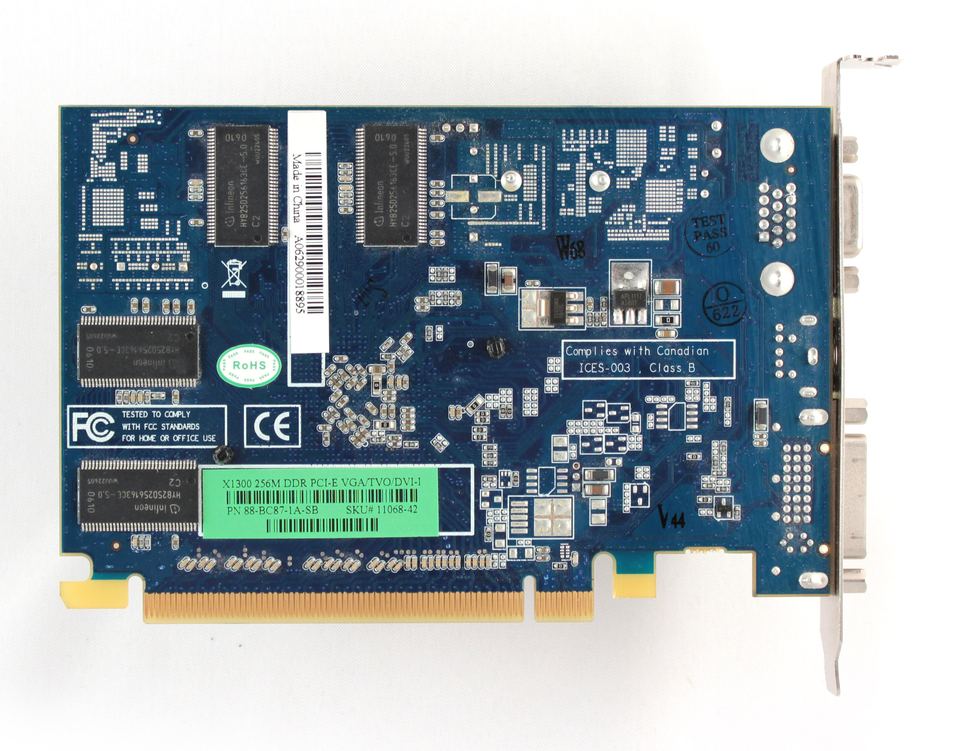

Rear view of ATI Radeon X1300 board — Rear: representative physical card, ATI Radeon X1300 board.View original external gallery

Generic packaging in the museum gallery for ATI Radeon X1300 board; no model name is visible on its face — Box: packaging in the museum gallery for ATI Radeon X1300 board. The generic box face does not visibly identify the GPU model. The source page and board views in the same gallery establish the ATI Radeon X1300 association.View original external gallery
