Radeon HD 5750

TeraScale 2 Radeon HD 5000 Series Gaming Desktop GDDR5 2009

Key Metrics

Launch Date: 2009-10-13
Stream Processors: 720
Memory: 1 GB GDDR5
Memory Bandwidth: 73.6 GB/s
TDP/TBP: 86 W
Interface: PCIe 2.0 x16

Add to comparison

Save this GPU, then open another GPU page to compare them side by side.

GPU Specs

What do these fields mean?

Identity
Entry Type	Reference GPU
Official Name	ATI Radeon HD 5750
Architecture	TeraScale 2
Launch Date	2009-10-13
Core Specs
GPU Die	Juniper
Chip Variant / Package	FCBGA-962
Process Node	TSMC 40 nm
Transistor Count	1.04 billion
Die Size	166 mm²
Stream Processors	720
TMUs	36
ROPs	16
Base Clock	700 MHz
Boost Clock	700 MHz
Pixel Fillrate	11.2 GP/s
Texture Fillrate	25.2 GT/s
FP32 Throughput	1.01 TFLOPS
Memory
Memory Size	1 GB
Memory Type	GDDR5
Memory Bus Width	128-bit
Memory Clock	1,150 MHz
Memory Bandwidth	73.6 GB/s
L2 Cache	0.25 MB
L1 Cache	8 KB
Board and Display
TDP / TBP	86 W
Recommended PSU	250 W
Interface	PCIe 2.0 x16
Display Outputs	2x DVI, 1x HDMI 1.3a, 1x DisplayPort 1.1
Slot Width	Dual-slot
Card Length	178 mm
Software
Shader Model	5.0
DirectX Support	DirectX 11.0
OpenGL Support	OpenGL 4.4
OpenCL Support	OpenCL 1.2

GPU Gallery

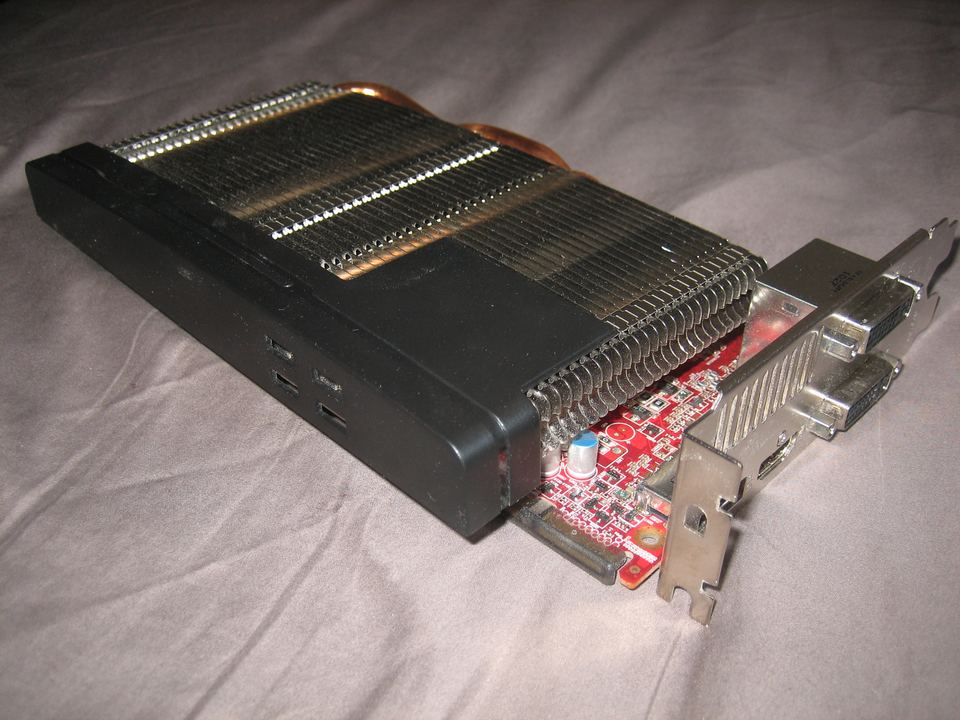

Angled front of a PowerColor SCS3 Radeon HD 5750 PCIe board with large passive heatsink — Front: PowerColor SCS3 AX5750 Radeon HD 5750 PCIe board. Source identifies PCIe 2.1; Wiki reference lists PCIe 2.0. The pictured 1 GB GDDR5 specification is source-stated. The exact photographed example is identified on its Commons file page.View original file page
