Radeon HD 5670

TeraScale 2 Radeon HD 5000 Series Gaming Desktop GDDR5 2010

Key Metrics

Launch Date: 2010-01-14
Stream Processors: 400
Memory: 1 GB GDDR5
Memory Bandwidth: 64 GB/s
TDP/TBP: 64 W
Interface: PCIe 2.0 x16

Add to comparison

Save this GPU, then open another GPU page to compare them side by side.

GPU Specs

What do these fields mean?

Identity
Entry Type	Reference GPU
Official Name	ATI Radeon HD 5670
Architecture	TeraScale 2
Launch Date	2010-01-14
Core Specs
GPU Die	Redwood
Chip Variant / Package	FCBGA-962
Process Node	TSMC 40 nm
Transistor Count	0.63 billion
Die Size	104 mm²
Stream Processors	400
TMUs	20
ROPs	8
Base Clock	775 MHz
Boost Clock	775 MHz
Pixel Fillrate	6.2 GP/s
Texture Fillrate	15.5 GT/s
FP32 Throughput	0.62 TFLOPS
Memory
Memory Size	1 GB
Memory Type	GDDR5
Memory Bus Width	128-bit
Memory Clock	1,000 MHz
Memory Bandwidth	64 GB/s
L2 Cache	0.25 MB
L1 Cache	8 KB
Board and Display
TDP / TBP	64 W
Recommended PSU	250 W
Interface	PCIe 2.0 x16
Display Outputs	1x DVI, 1x HDMI 1.3a, 1x VGA
Slot Width	Single-slot
Card Length	168 mm
Software
Shader Model	5.0
DirectX Support	DirectX 11.0
OpenGL Support	OpenGL 4.4
OpenCL Support	OpenCL 1.2

GPU Gallery

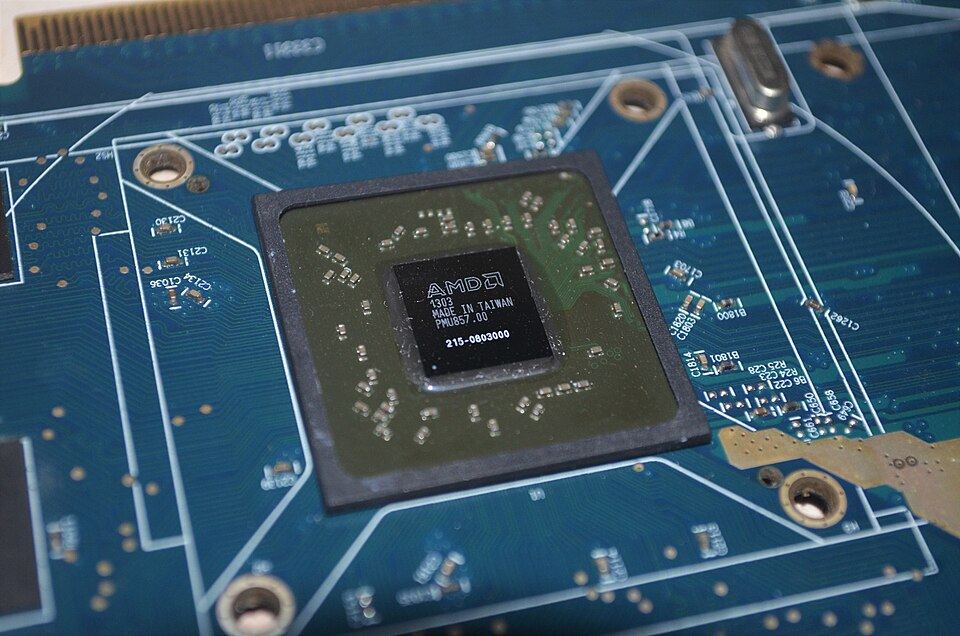

Exposed GPU of HIS Radeon HD 5670 GPU on an exposed board — Exposed GPU: HIS Radeon HD 5670 GPU on an exposed board. The source uses the shortened Radeon 5670 name for this HIS HD 5670 example. The exposed package does not establish reference memory configuration or clocks. The exact Commons file page identifies this photographed example.View original file page
