Radeon HD 3450

TeraScale Radeon HD 3000 / 2000 Series Gaming Desktop DDR2 2007

Key Metrics

Launch Date: 2007-12-10
Stream Processors: 40
Memory: 256 MB DDR2
Memory Bandwidth: 8 GB/s
TDP/TBP: 25 W
Interface: PCIe 2.0 x16

Add to comparison

Save this GPU, then open another GPU page to compare them side by side.

GPU Specs

What do these fields mean?

Identity
Entry Type	Reference GPU
Official Name	ATI Radeon HD 3450
Architecture	TeraScale
Launch Date	2007-12-10
Core Specs
GPU Die	RV620
Chip Variant / Package	FCBGA-632
Process Node	TSMC 55 nm
Transistor Count	0.18 billion
Die Size	67 mm²
Stream Processors	40
TMUs	4
ROPs	4
Base Clock	600 MHz
Boost Clock	600 MHz
Pixel Fillrate	2.4 GP/s
Texture Fillrate	2.4 GT/s
FP32 Throughput	0.05 TFLOPS
Memory
Memory Size	256 MB
Memory Type	DDR2
Memory Bus Width	64-bit
Memory Clock	500 MHz
Memory Bandwidth	8 GB/s
L2 Cache	0.064 MB
Board and Display
TDP / TBP	25 W
Recommended PSU	200 W
Interface	PCIe 2.0 x16
Display Outputs	1x DVI, 1x VGA, 1x S-Video
Slot Width	Single-slot
Software
Shader Model	4.1
DirectX Support	DirectX 10.1
OpenGL Support	OpenGL 3.3

GPU Gallery

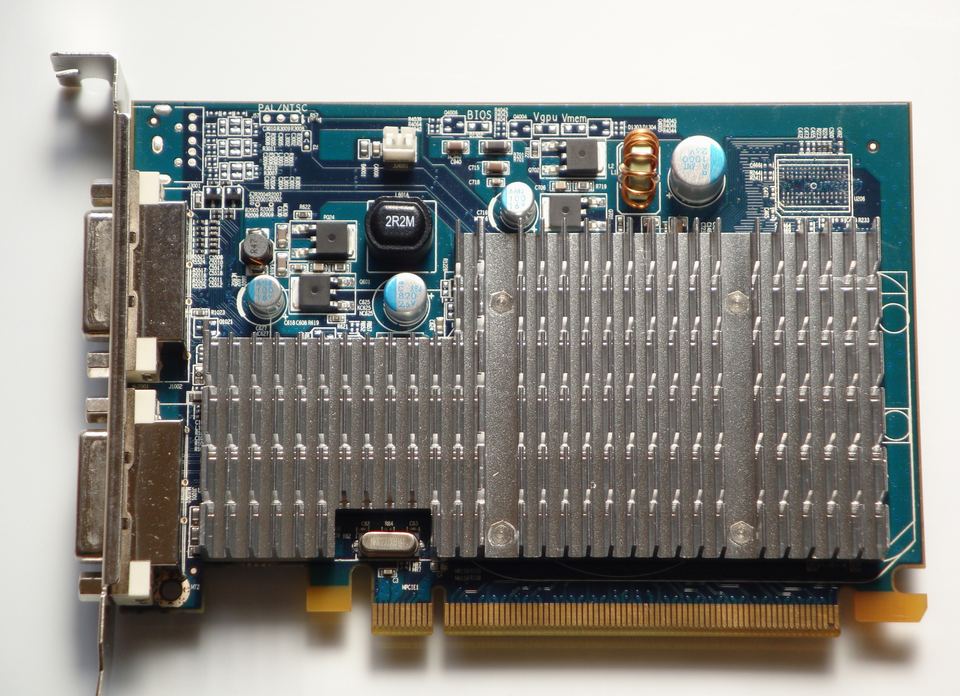

Front of a Radeon HD 3450 dual-DVI PCIe board — Front: Radeon HD 3450 dual-DVI PCIe board. The photographed card does not establish the Wiki 256 MB DDR2 memory configuration or PCIe generation. The exact photographed example is identified on its Commons file page.View original file page
