Radeon 9600

R300 Radeon 9000 Series Gaming Desktop DDR 2003

Key Metrics

Launch Date: 2003-10-01
Memory: 64 MB DDR
Memory Bandwidth: 6.048 GB/s
TDP/TBP: 12 W
Interface: AGP 8x
Process Node: TSMC 130 nm

Add to comparison

Save this GPU, then open another GPU page to compare them side by side.

GPU Specs

What do these fields mean?

Identity
Entry Type	Reference GPU
Official Name	ATI Radeon 9600
Architecture	R300
Launch Date	2003-10-01
Core Specs
GPU Die	RV350
Process Node	TSMC 130 nm
Transistor Count	0.06 billion
Die Size	76 mm²
TMUs	4
ROPs	4
Base Clock	324 MHz
Boost Clock	324 MHz
Pixel Fillrate	1.296 GP/s
Texture Fillrate	1.296 GT/s
Memory
Memory Size	64 MB
Memory Type	DDR
Memory Bus Width	128-bit
Memory Clock	189 MHz
Memory Bandwidth	6.048 GB/s
Board and Display
TDP / TBP	12 W
Recommended PSU	200 W
Interface	AGP 8x
Display Outputs	1x DVI, 1x VGA, 1x S-Video
Slot Width	Single-slot
Software
DirectX Support	DirectX 9.0
OpenGL Support	OpenGL 2.0

GPU Gallery

Front view of ATI Radeon 9600 board — Front: representative physical card, ATI Radeon 9600 board. Example board bus: museum lists AGP without a generation; Wiki lists AGP 8x; Example board memory: museum lists 128 MB; Wiki lists 64 MBView original external gallery

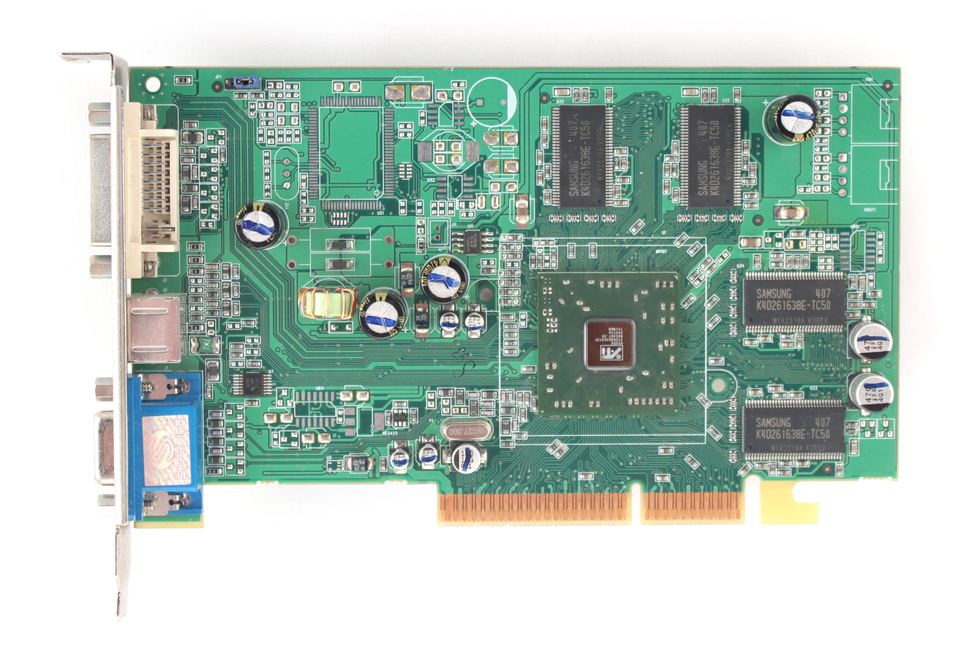

Exposed board of ATI Radeon 9600 board — Exposed board: representative physical card, ATI Radeon 9600 board. Example board bus: museum lists AGP without a generation; Wiki lists AGP 8x; Example board memory: museum lists 128 MB; Wiki lists 64 MBView original external gallery

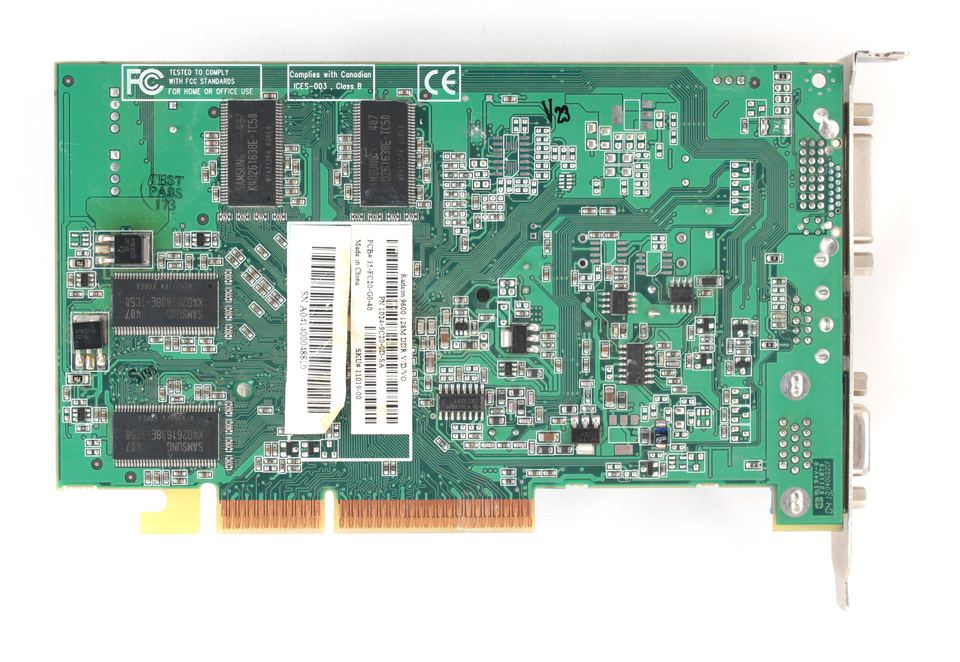

Rear view of ATI Radeon 9600 board — Rear: representative physical card, ATI Radeon 9600 board. Example board bus: museum lists AGP without a generation; Wiki lists AGP 8x; Example board memory: museum lists 128 MB; Wiki lists 64 MBView original external gallery

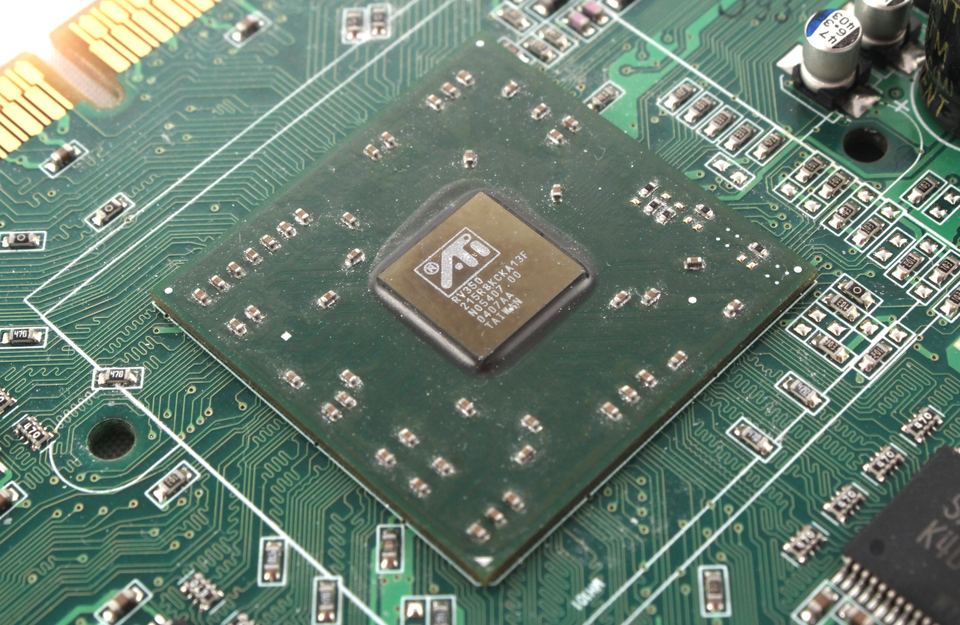

View 4 view of ATI Radeon 9600 board — View 4: representative physical card, ATI Radeon 9600 board. Example board bus: museum lists AGP without a generation; Wiki lists AGP 8x; Example board memory: museum lists 128 MB; Wiki lists 64 MBView original external gallery

Reviews1 review

ArticleAnandTech

Fall 2003 Video Card Roundup - Part 3: ATI's Radeon 9600 XT

Review of the Radeon 9600 XT.
