Radeon 9600 XT

R300 Radeon 9000 Series Gaming Desktop DDR 2003

Key Metrics

Launch Date: 2003-10-01
Memory: 128 MB DDR
Memory Bandwidth: 9.6 GB/s
TDP/TBP: 22 W
Interface: AGP 8x
Process Node: TSMC 130 nm

Add to comparison

Save this GPU, then open another GPU page to compare them side by side.

GPU Specs

What do these fields mean?

Identity
Entry Type	Reference GPU
Official Name	ATI Radeon 9600 XT
Architecture	R300
Launch Date	2003-10-01
Core Specs
GPU Die	RV360
Process Node	TSMC 130 nm
Transistor Count	0.06 billion
Die Size	76 mm²
TMUs	4
ROPs	4
Base Clock	500 MHz
Boost Clock	500 MHz
Pixel Fillrate	2 GP/s
Texture Fillrate	2 GT/s
Memory
Memory Size	128 MB
Memory Type	DDR
Memory Bus Width	128-bit
Memory Clock	300 MHz
Memory Bandwidth	9.6 GB/s
Board and Display
TDP / TBP	22 W
Recommended PSU	200 W
Interface	AGP 8x
Display Outputs	1x DVI, 1x VGA, 1x S-Video
Slot Width	Single-slot
Software
DirectX Support	DirectX 9.0
OpenGL Support	OpenGL 2.0

GPU Gallery

Front view of ATI Radeon 9600 XT board — Front: representative physical card, ATI Radeon 9600 XT board. Example board bus: museum lists AGP without a generation; Wiki lists AGP 8xView original external gallery

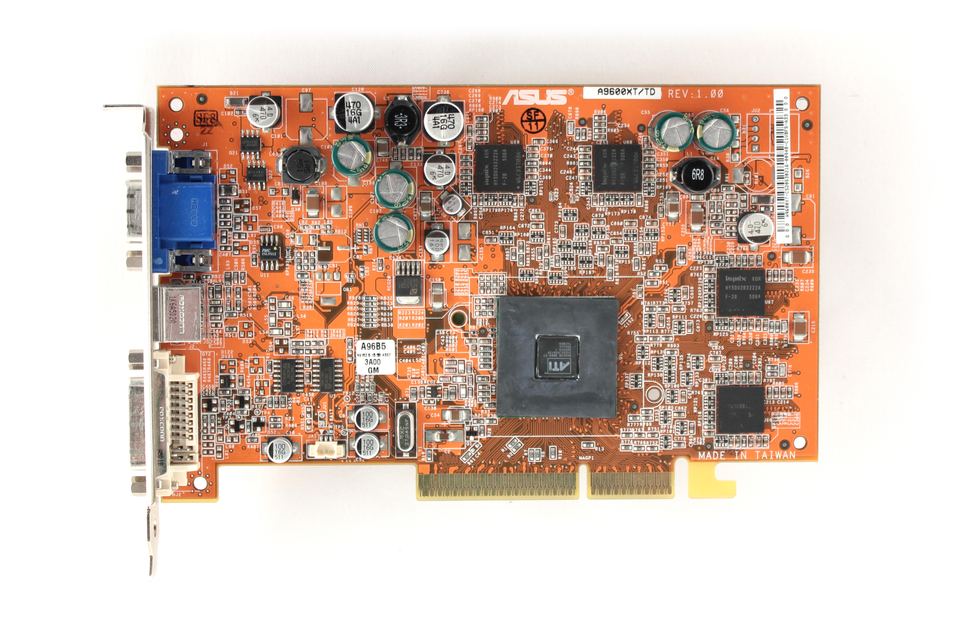

Exposed front of ATI Radeon 9600 XT board — Exposed front: representative physical card, ATI Radeon 9600 XT board. Example board bus: museum lists AGP without a generation; Wiki lists AGP 8xView original external gallery

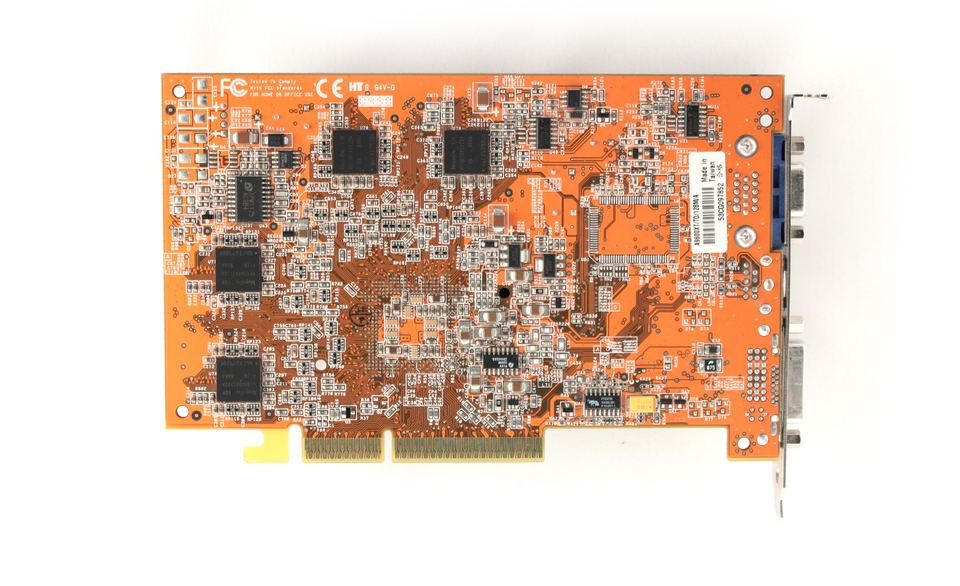

Rear view of ATI Radeon 9600 XT board — Rear: representative physical card, ATI Radeon 9600 XT board. Example board bus: museum lists AGP without a generation; Wiki lists AGP 8xView original external gallery

Reviews3 reviews

ArticleAnandTech

ATI Radeon 9600 XT Review

Review coverage of the Radeon 9600 XT.

ArticleExact modelTom's Hardware · 2003-10-15

Facelift: The ATi Radeon 9600 XT

ArticlePartner cardTom's Hardware · 2004-01-19

ASUS Radeon 9600 XT/TVD

The reviewed board is a partner version of this GPU.
